FAQs: Combine Air Flow Systems

Getting fed up...

…with constant clogs and looking to increase the useful life of your combine’s air filter, BUT want to know more before upgrading?

Here we will address our most frequently asked questions about our combine Air Flow Systems.

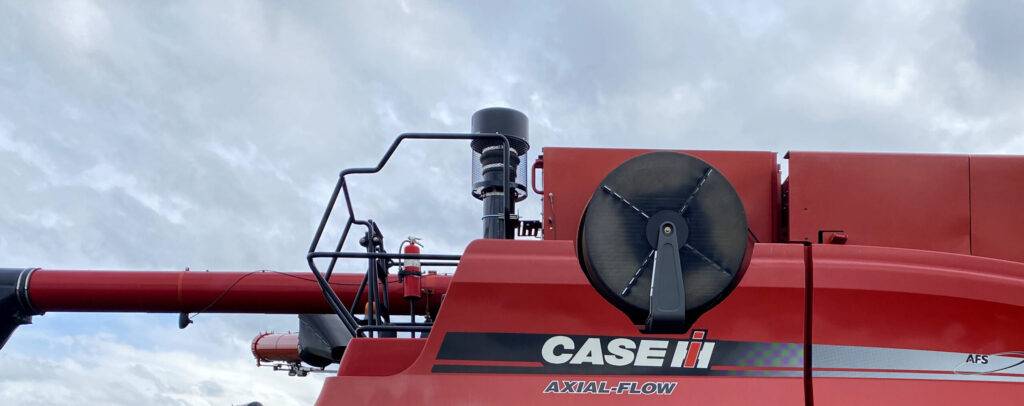

Is this now the high point of the combine? How high does it sit?

The new Air Flow System will sit 55-60” above the deck.  It will be the same height as the OEM bin extensions when unfolded.  We have a T-Bolt clamp designed for convenient removal in low clearance areas.

Is the additional corn screen necessary for my application?

The additional screen that sits below the Hillco pre-cleaner is necessary when harvesting leafy crops such as corn or milo/sorghum. Without the screen large leaves can get sucked into the Hillco pre-cleaner and cause the pre-cleaner to slow, not working efficiently. The additional screen prevents this.

How does it work?

The tractor’s engine draws air into the intake, which spins a set of impellers inside the pre-cleaner. The centrifugal force of the spinning impeller expels the heavier “dirty” particles out of the discharge louver. The left-over clean air is what then enters the intake.

Does my local dealer carry these?

CaseIH | Farm toys, Classic tractor, Case agriculture

  • Case IH dealers can order and sell them.

What are the warranty parameters?

We provide a lifetime warranty on the pre-cleaner top and one year on the rest of the components.

What improvement in air filter life can be expected after upgrading to this system?

The amount of improvement you will see depends entirely on the conditions.  Generally, we see about a 10X increase in filter life if it had been plugging frequently before installation.  For example, some customers are dealing with clogging air filters every couple of hours. In a situation like that, the Hillco kit may extend filter life so that they are only addressing a clog every 3-4 days.  In less severe circumstances they can run much longer after installation.  Hillco recommends never exceeding the OEM air filter replacement schedule.

How do I order a kit?

Call Hillco’s sales team at 800-937-2461 or place an order online by clicking on the phone icon or "How Do I Order?" above!

After an order is placed, how long will it take to ship?

If the kit is in stock it will usually ship from either Idaho or Wisconsin, the next business day.

How long does it take to install a Hillco Air Flow kit?

Installation time varies by model. However, the average time required is 30-90 minutes.

Is the tractor or combine’s original air filter removed when a Hillco pre-cleaner is installed?

No, the original air filter stays in place.  We recommend that our customers verify the Case IH air filter is clean and the venturi suction tube from the exhaust is also free of debris before installation.

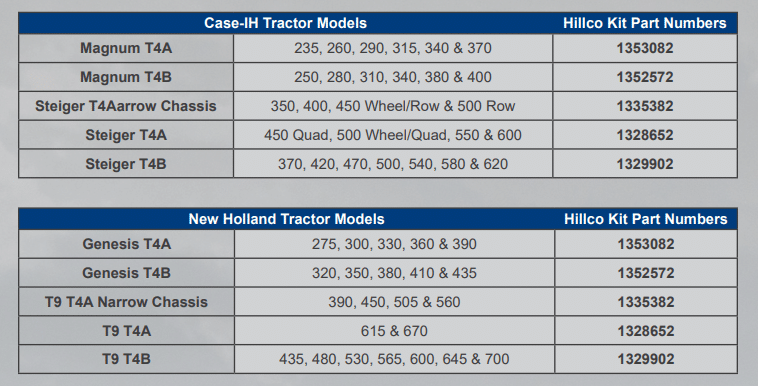

What tractors and combines does Hillco have kits developed for?

What if my tractor or combine model is not listed?

Please call the Hillco sales department.  They will have ideas that will assist you and insight into kits that are under development. They may also have an existing kit that, with some modification, will suit your needs.
